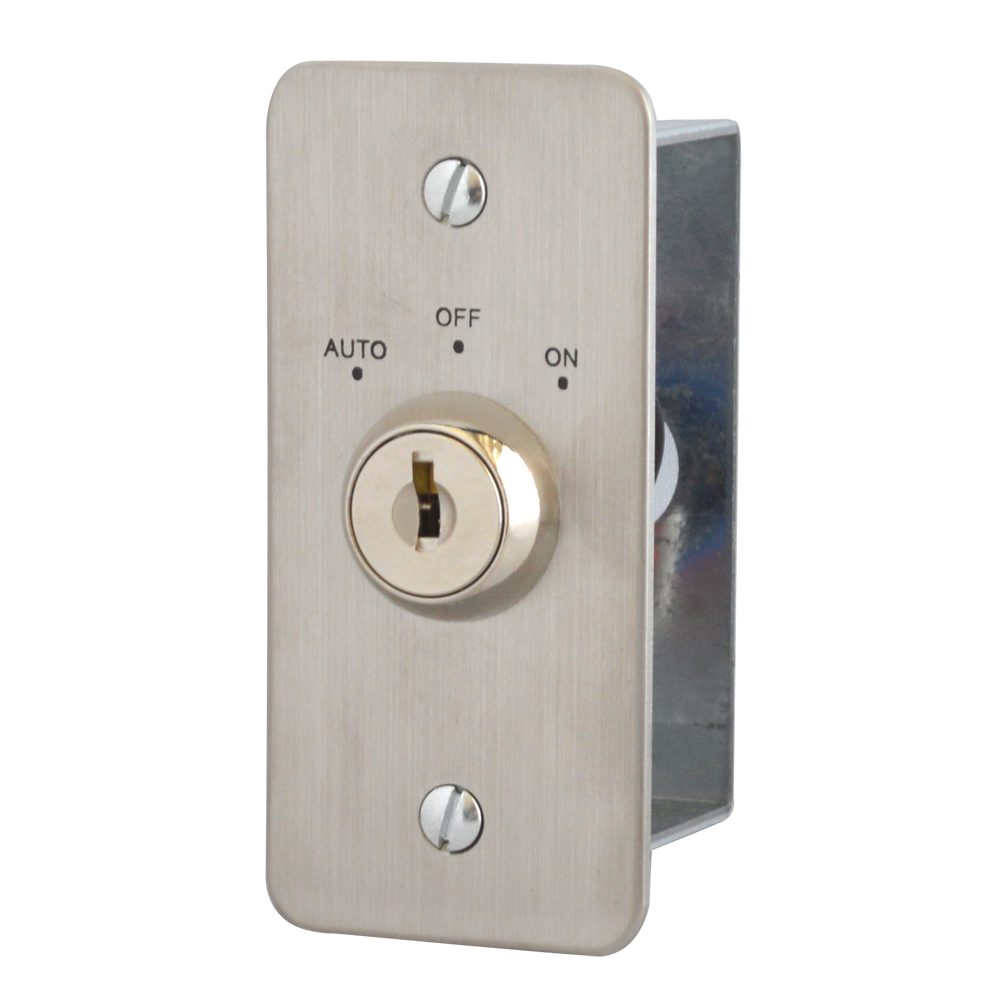

ASEC Three Position Key Switch Engraved

The Asec Three Position Key Switch (AS9854) is a narrow-style electric key switch designed for secure access control applications, particularly roller shutter doors and automatic entrances. Featuring a high-quality chrome cylinder mounted on a durable stainless steel faceplate, this switch offers a robust and reliable solution for managing system modes.

The faceplate is clearly engraved with 'AUTO', 'OFF', and 'ON' legends, allowing for straightforward operation. It features maintained operation, meaning the switch remains in its selected position once turned. For maximum flexibility and convenience, the key can be inserted and removed in any of the three positions.

Designed for flush mounting, this narrow-style switch is supplied complete with two keys and all necessary fixings. It supports dual-voltage input (12/24V AC/DC) and provides both Normally Open (N/O) and Normally Closed (N/C) outputs to suit various wiring configurations.

Technical Specifications

• Brand: Asec
• Part Number: AS9854
• Finish: Stainless Steel
• Fitting: Flush

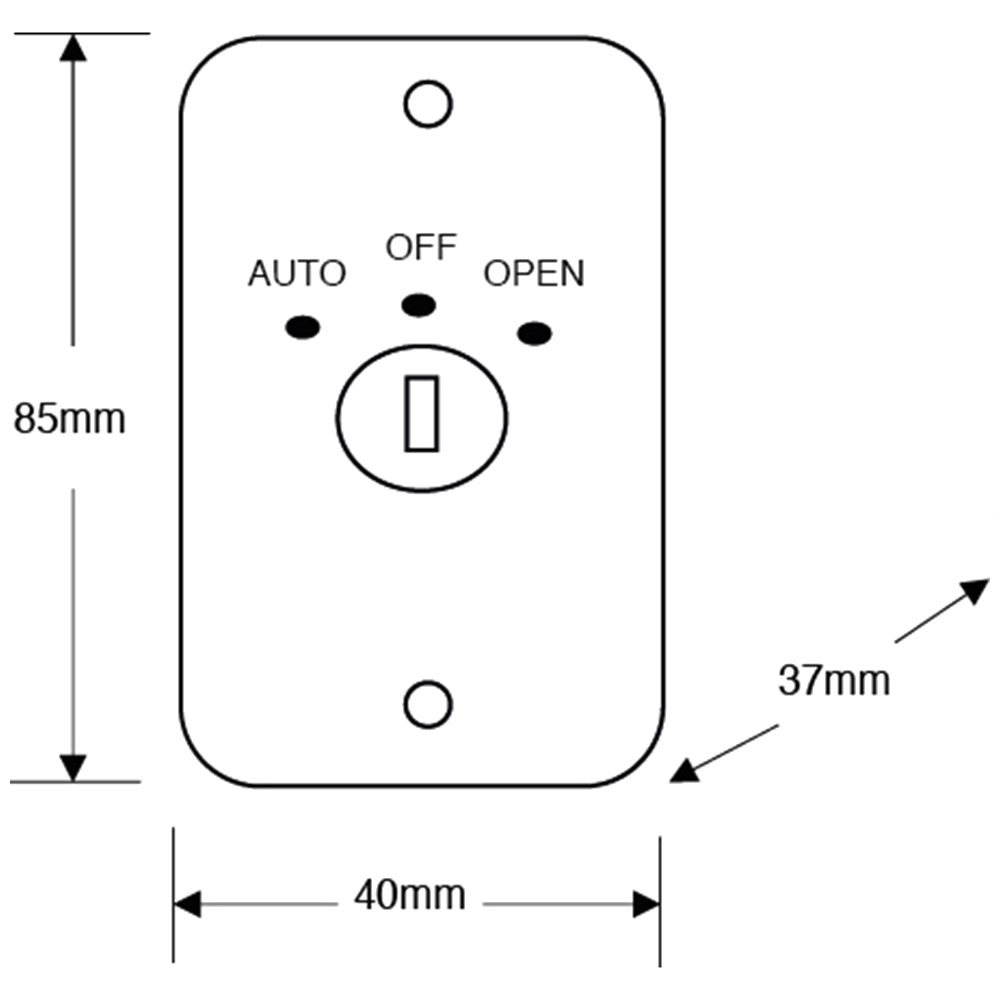

• Dimensions: 85mm (H) x 40mm (W) x 37mm (D)
• Input Voltage: 12/24V AC/DC
• Current Consumption: 2A
• Outputs: N/O & N/C (Normally Open & Normally Closed)
• Operation: Maintained
• Legend: AUTO, OFF, ON
• Keys Supplied: 2
• Weight: 175g

Key Features

• Three-Position Control: Clearly engraved with 'AUTO', 'OFF', and 'ON' for easy mode selection.
• Key Removable in All Positions: The key can be inserted and removed in any of the three positions for maximum flexibility.
• Maintained Operation: The switch remains in the selected position until manually turned.
• Robust Construction: Features a durable stainless steel faceplate and a chrome cylinder.
• Versatile Application: Ideal for use with roller shutter doors, automatic gates, and access control systems.
• Complete Package: Supplied with two keys and fixings for a complete installation.
