ASEC Rim Release
Asec
The Asec Rim Release (AS9832) is a highly durable, surface-mounted electric strike designed for medium to high duty access control applications. Featuring a robust zinc alloy case with a high-end black coating, complemented by a stainless steel front plate and lip, this rim release offers an excellent blend of security, longevity, and modern aesthetics.
One of the standout features of this electric release is its site-reversible operation. It allows for a simple, hassle-free interchange between fail-locked (fail secure) and fail-unlocked (fail safe) modes on-site, with no loose pins to worry about. Engineered for inward-opening doors, it boasts an impressive holding force of up to 907kg (2000lbs), providing exceptional resistance against forced entry.
The unit is powered by a 12V DC continuously rated coil, ensuring reliable performance with low standby current consumption (0.25A). Backed by a 1-year manufacturer's guarantee, the Asec Rim Release is a dependable choice for commercial and residential security systems alike.
Technical Specifications
- Manufacturer Reference: AS9832
- Input Voltage: 12V DC
- Current Consumption: 0.25A
- Holding Force: 907kg (2000lbs)
- Fitting: Rim (surface mount)
- Handing: Inward opening
- Body Dimensions: 88mm (H) x 40mm (D)
- Faceplate Dimensions: 88mm (H) x 62mm (W)
- Jaw Dimensions: 40mm (H) x 16mm (W) x 14mm (D)
- Finish: Stainless Steel & Black
- Guarantee: 1 Year
Key Features

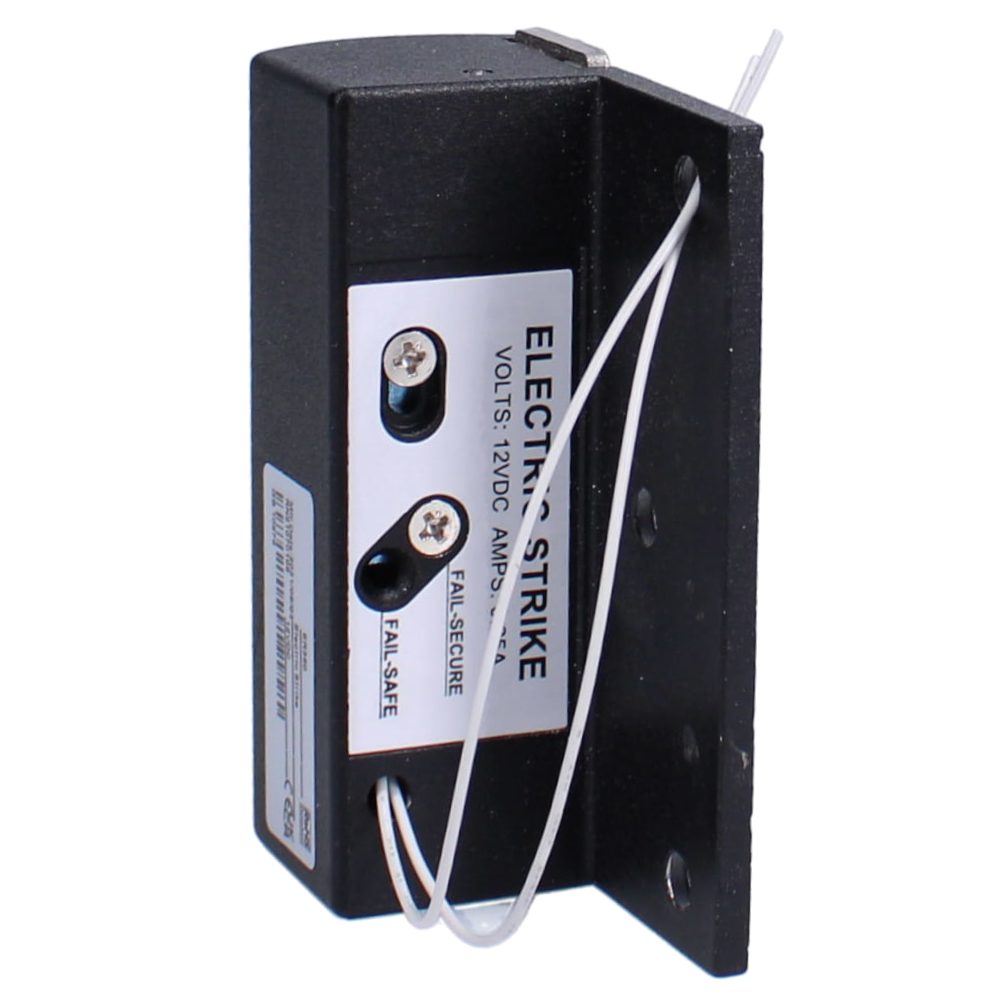

- Site-Reversible Operation: Easily switch between fail-locked (fail secure) and fail-unlocked (fail safe) modes on-site with no loose pins.
- High Holding Force: Offers up to 907kg (2000lbs) of resistance for robust security.
- Durable Construction: Built with a zinc alloy case, stainless steel front plate, and stainless steel lip.
- Energy Efficient: Features a 12V continuously rated coil with low standby current consumption.
- High-End Finish: Sleek black coated body with a stainless steel faceplate to suit modern doors.
- Medium to High Duty: Ideal for high-traffic commercial or residential access control systems.
