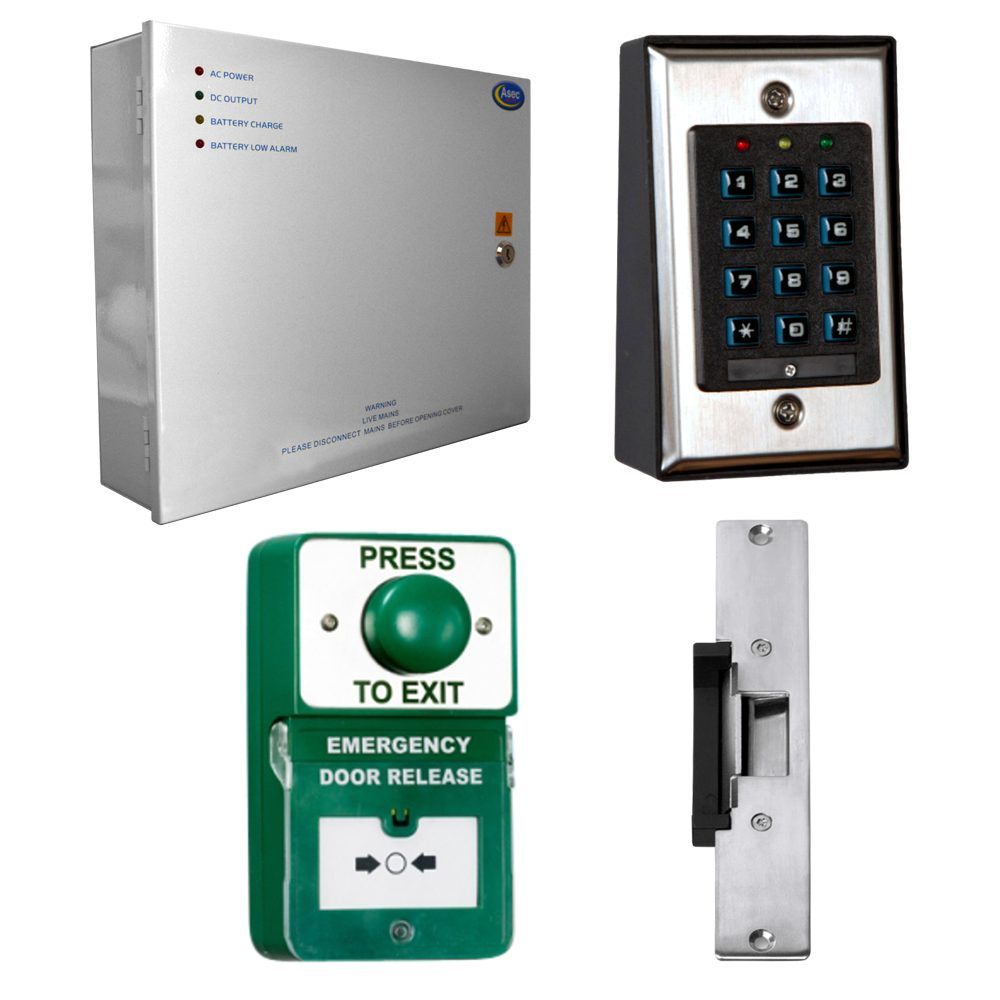

ASEC Keypad Kit with Exit Button, Call Point and Release

The Asec Keypad Kit with Exit Button, Call Point and Release is a comprehensive, conveniently boxed access control solution. Ideal for a wide range of standard internal applications, this kit contains all the essential components required to complete a professional electric access control installation.

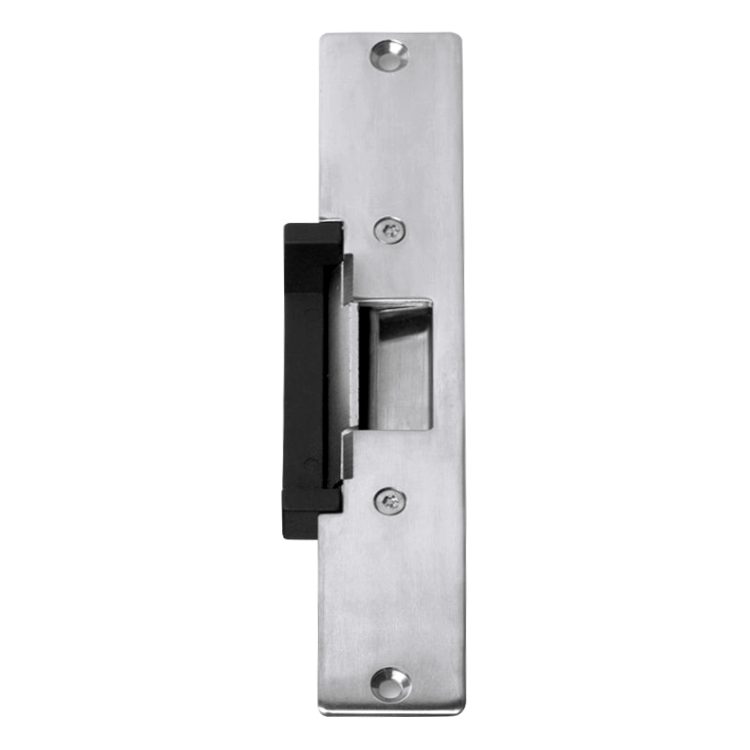

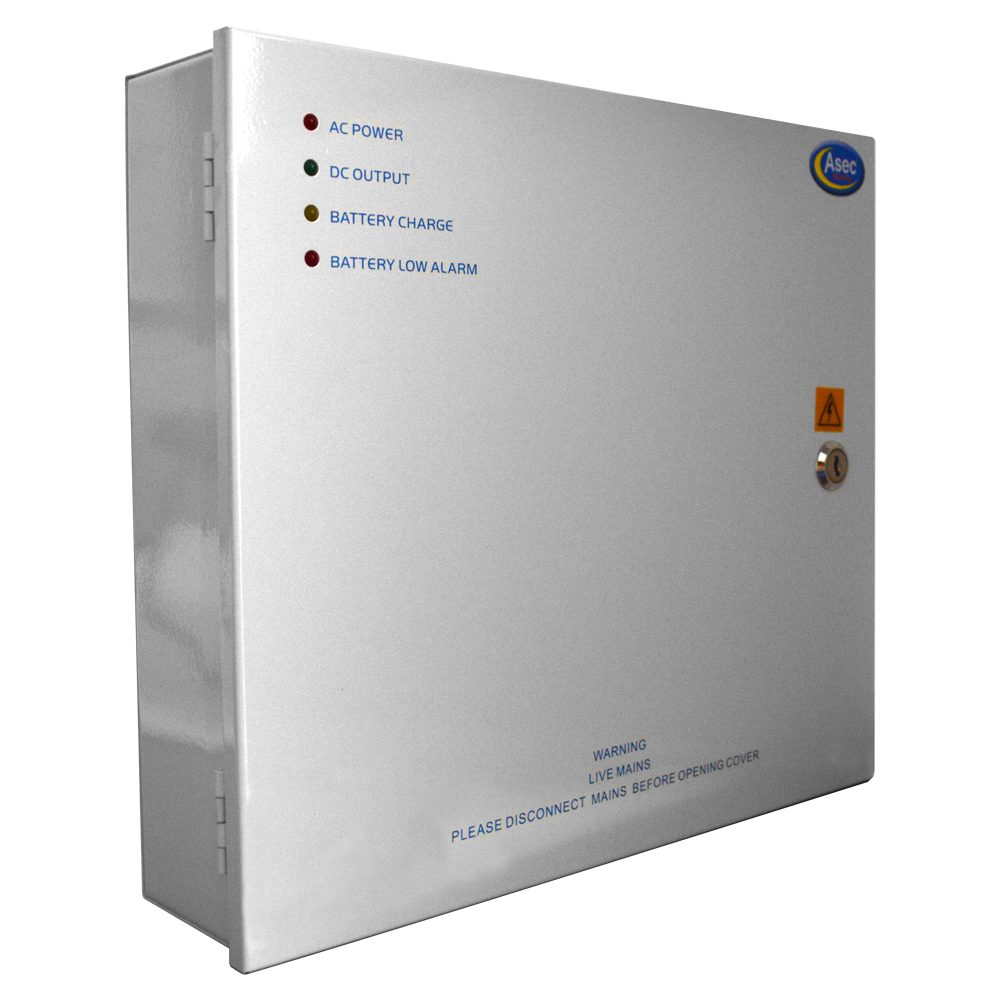

Inside the box, you will find an Asec internal keypad, a 12VDC 1 Amp boxed power supply, a dual-unit exit button and call point, and an ANSI electric mortice release. For maximum installation flexibility, the electric release is supplied with both long (201mm) and short (124mm) faceplates and features site-reversible fail-locked or fail-unlocked operation.

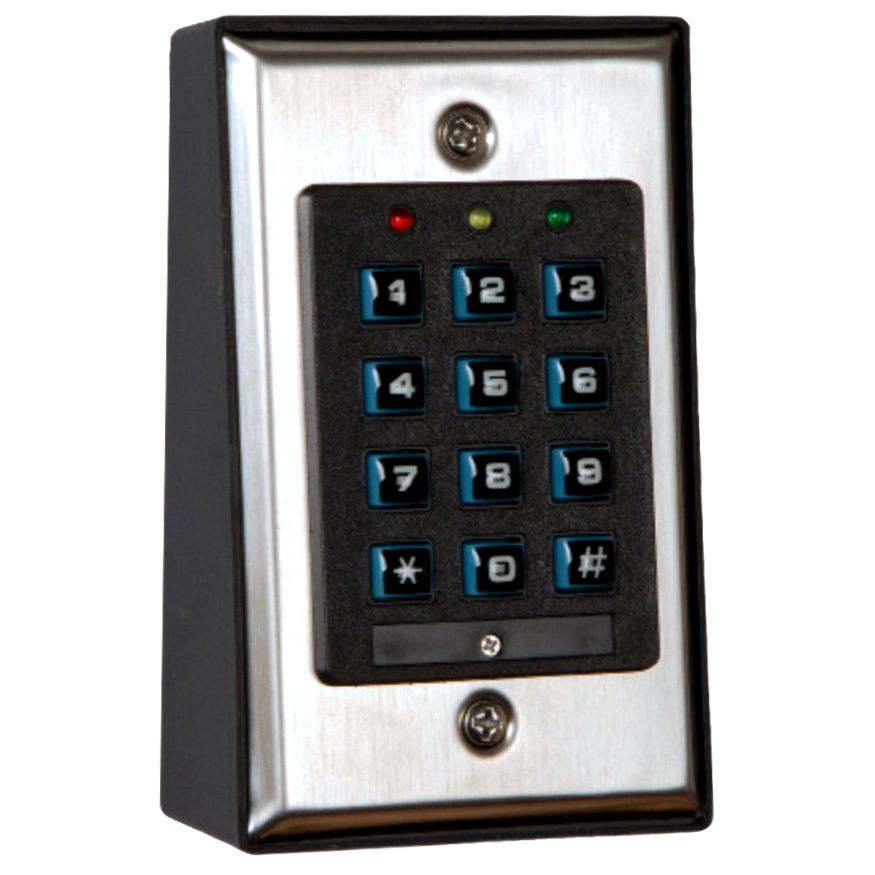

Programming is handled directly via the keypad, which supports up to 120 users and features clear LED and buzzer indications for ease of use. This complete package provides a reliable, all-in-one security solution for commercial or residential properties.

Technical Specifications

• Brand: Asec
• Manufacturer Reference: AS11663
• Input Voltage: 230V AC mains
• Power Supply Output: 12VDC 1 Amp (boxed)
• Holding Force: 900Kg / 2000lb (Tested)
• User Capacity: Up to 120 users
• Programming: Via keypad
• Operation: Fail Locked / Fail Unlocked (site reversible)
• Faceplate Heights Included: Short (124mm) and Long (201mm)
• Backup Battery Support: Up to 7Ah size (battery not included)
• Monitored: No
• Resettable: Yes
• Weight: 3.5Kg

Key Features

• All-In-One Kit: Includes the main components required for a full electric access control installation.
• Conveniently Boxed: A complete, ready-to-install solution ideal for standard applications.

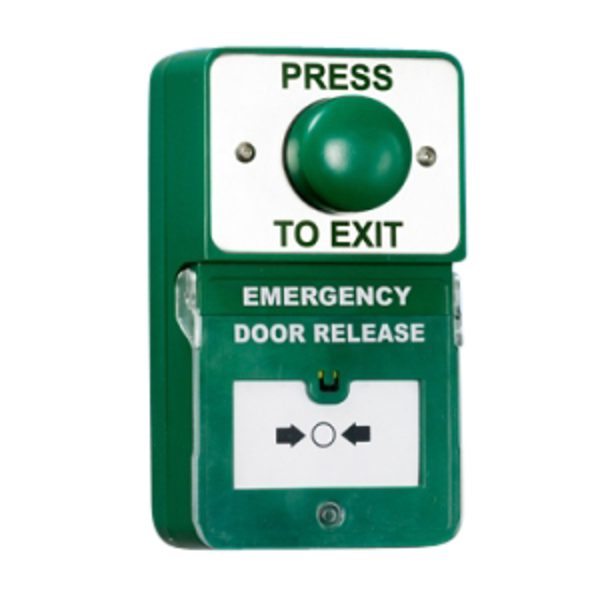

• Dual-Unit Exit & Call Point: Combines an exit button and emergency call point in a single unit.
• Flexible Installation: Supplied with both long and short faceplates to suit different door frames.
• User-Friendly Feedback: Built-in LED and buzzer indications provide clear visual and audible status updates.
• Site Reversible: Easily configure the electric release to fail-locked or fail-unlocked operation on-site.
