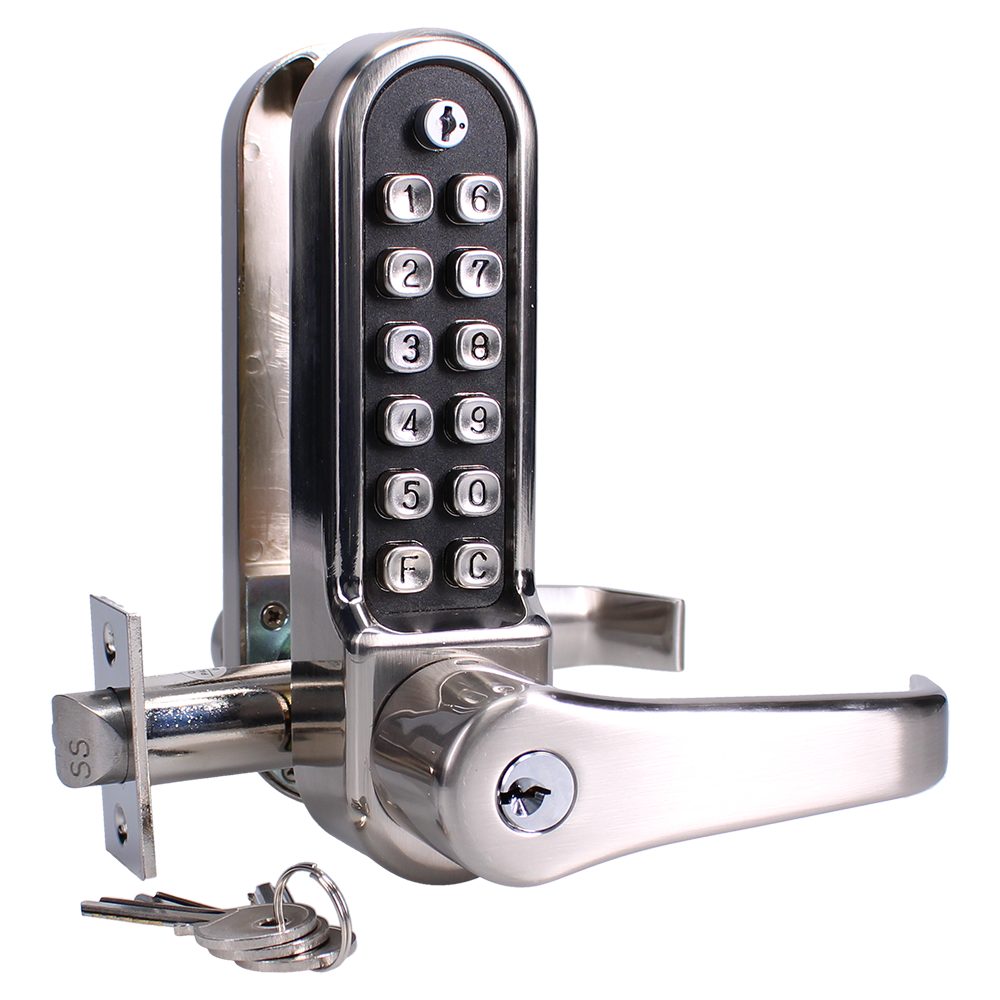

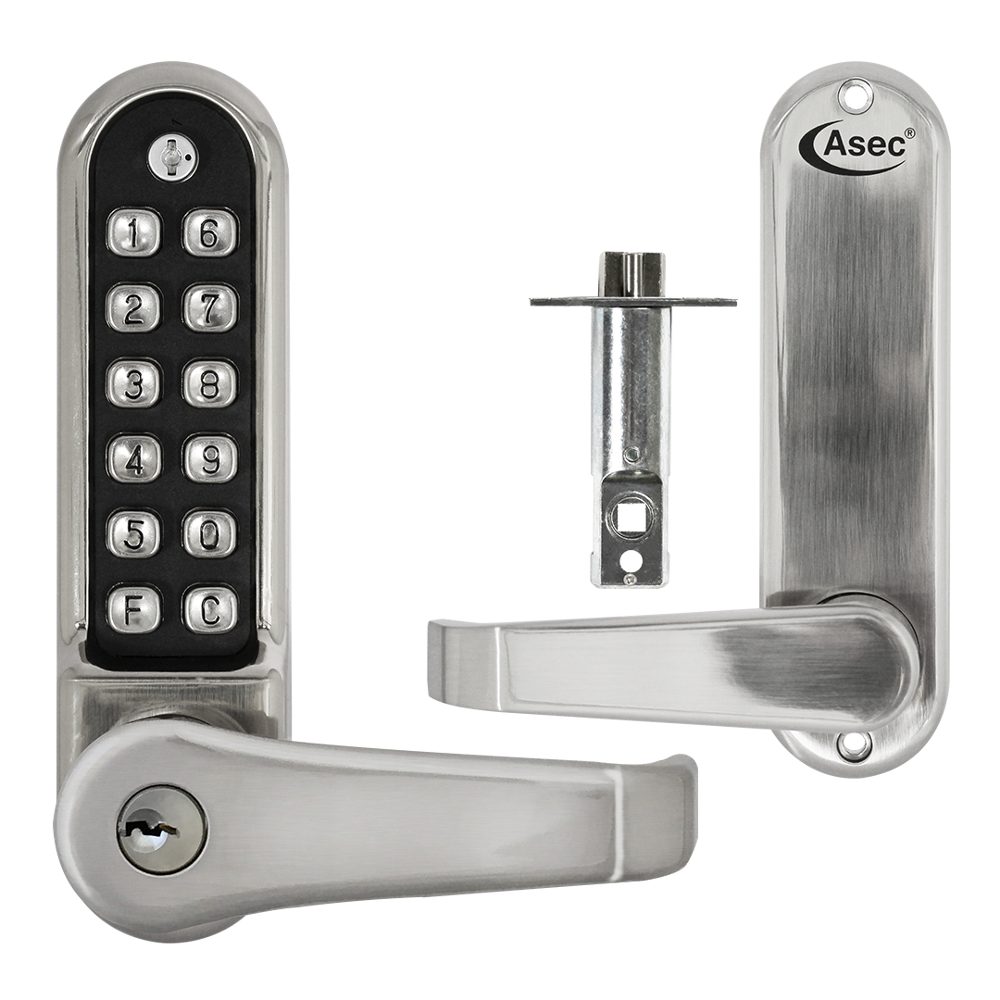

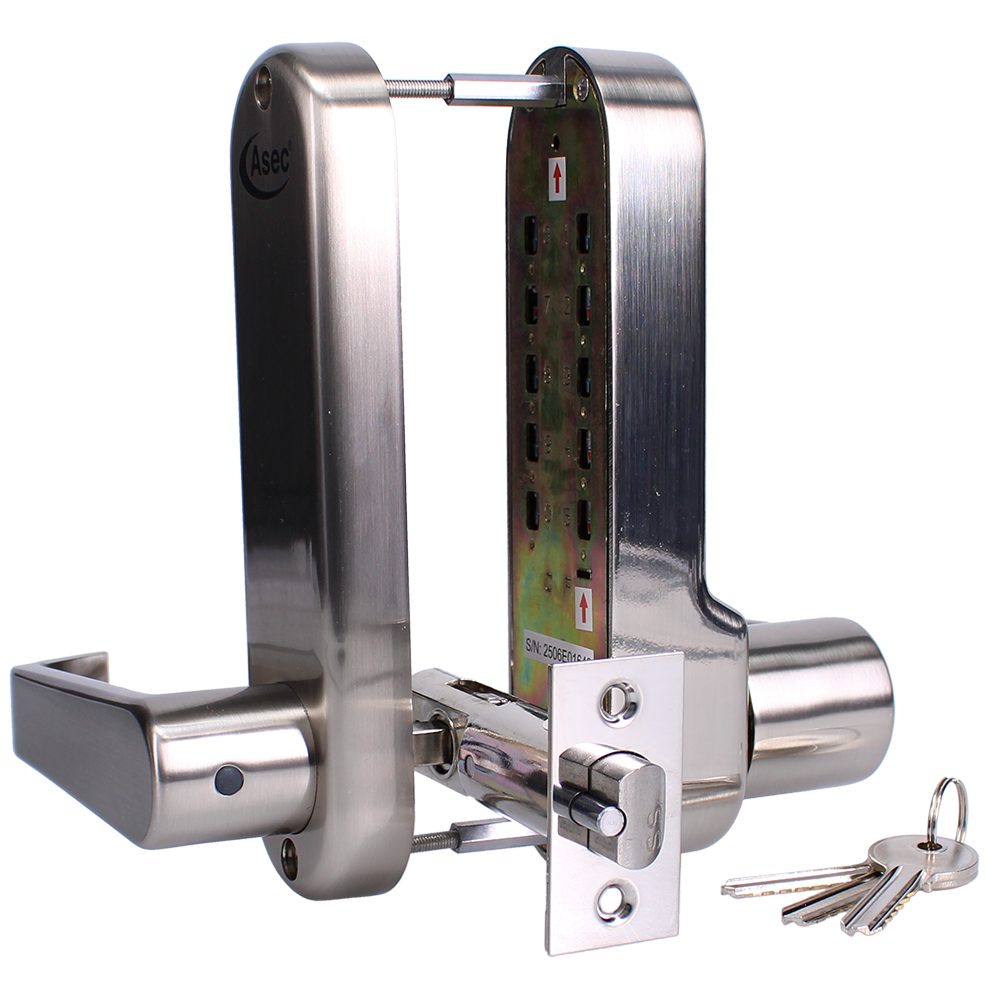

ASEC AS4300 Series Lever Operated Easy Code Change Digital Lock With Key Override & Optional Free Passage
Asec
The Asec AS4300 Series Lever Operated Digital Lock (AS4309) offers a highly secure and convenient access control solution for medium to heavy-duty timber doors. Designed for both internal and external applications, this robust mechanical digital lock features an innovative "Easy Code Change" function. This allows users to quickly update the entry code from the outside of the door without having to remove the unit from the door face.
For added convenience, the AS4309 includes a key override facility (supplied with three keys) to allow manual key access when required. It also features an optional free passage mode, enabling unrestricted entry during busy periods without needing to enter a code. The lock is equipped with a free-turning lever handle that helps protect the internal mechanism against forced entry, alongside 12 large indented buttons for easy operation. It is fully reversible to suit both left and right-handed doors.
Technical Specifications
- Brand: Asec
- Manufacturer Reference: AS4309
- Finish: Stainless Steel
- Backset: 55mm
- Case Depth Required: 84mm
- Door Thickness: 35mm to 65mm
- Spindle: 8mm
- Keys Supplied: 3
- Handing: Reversible
- Operation Outside: Lever handle on entry of code
- Operation Inside: Lever handle free exit
- Latch: Supplied with 60mm tubular latch
- Combinations: 1,000+
- Buttons: 12
- Codes: 1
- Width: 48mm
- Weight: 2.5kg
- Guarantee: 5 Year
Key Features
- On-Door Easy Code Change: Change the combination quickly and easily without removing the lock from the door.
- Key Override Facility: Supplied with three keys for manual backup access.
- Optional Free Passage Mode: Allows the lock to be set for code-free entry when unrestricted access is needed.
- Forced Entry Protection: Free-turning lever handle prevents damage to the internal mechanism if forced.
- Versatile Application: Suitable for medium to heavy-duty use on internal or external timber doors.
- User-Friendly Design: Features 12 large indented buttons for clear and easy code entry.
