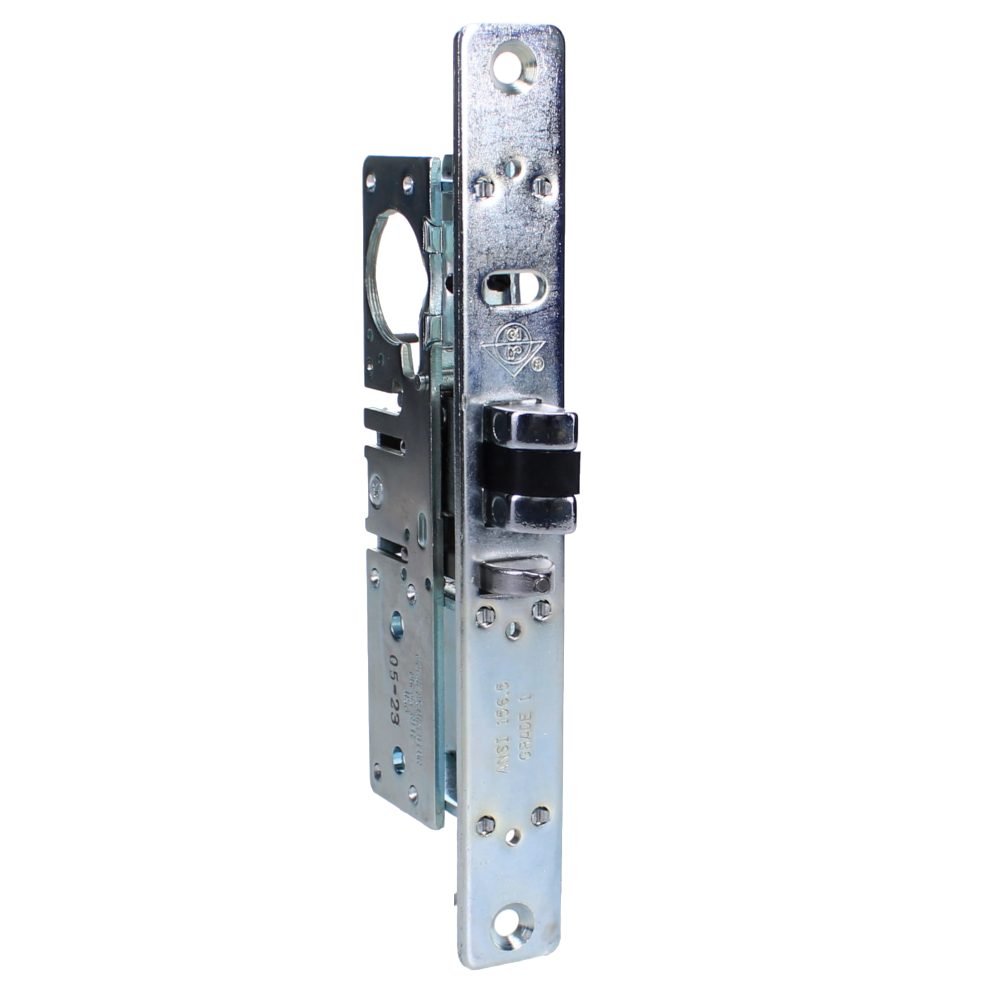

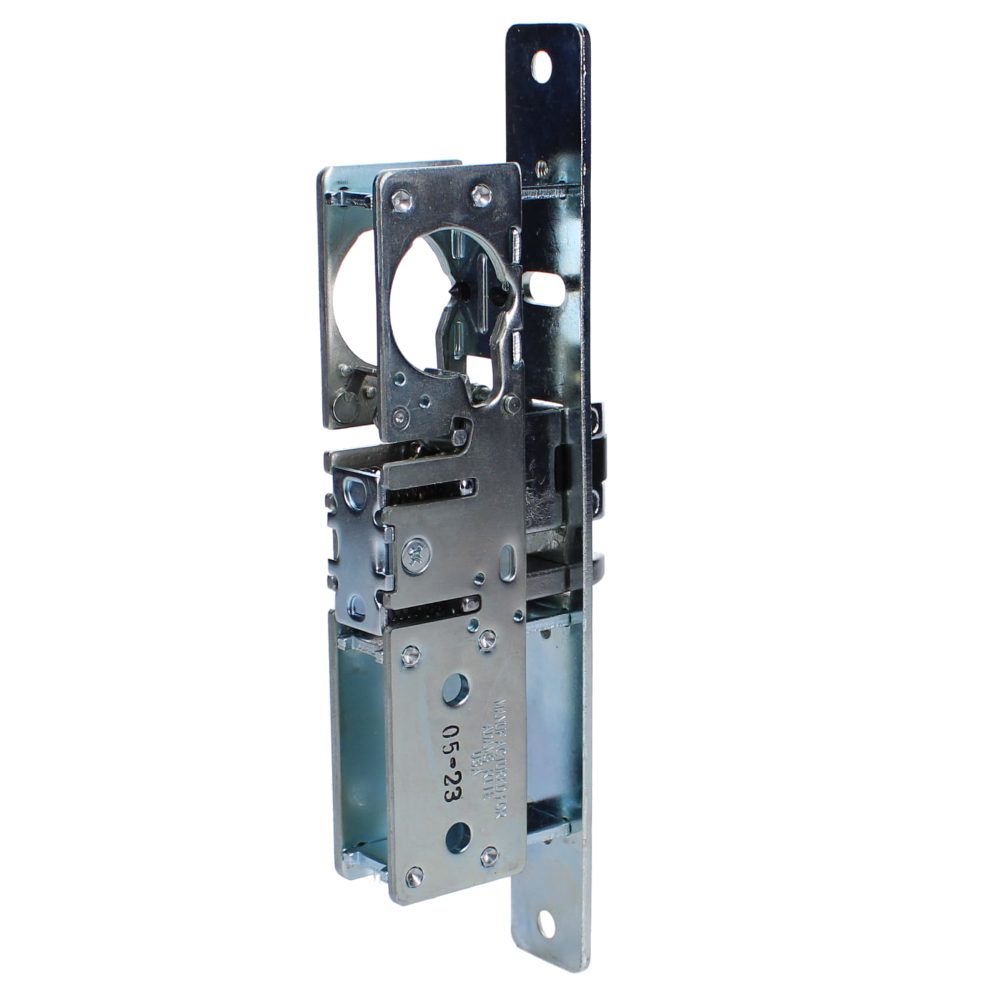

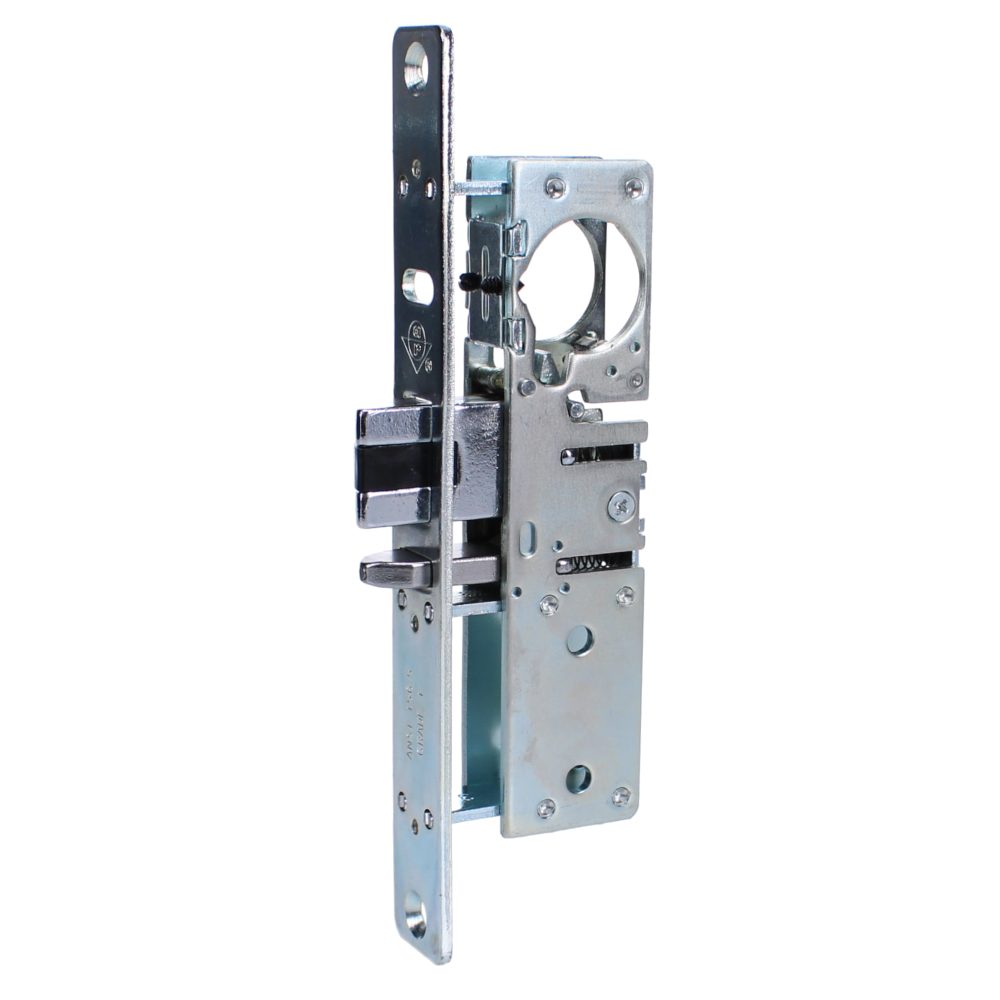

ADAMS RITE 4720 ANSI Mortice Deadlatch Case
Adams Rite
The Adams Rite 4720 ANSI Mortice Deadlatch Case is a highly reliable, narrow-stile locking solution designed for use on hollow metal or wooden doors. Providing flexible traffic control and robust security, this deadlatch is ideal for commercial, retail, and public buildings.
A key security benefit of the 4720 is its automatic deadlocking feature: when the door is closed, the auxiliary bolt automatically deadlocks the latchbolt to prevent tampering and shimming. The reversible latchbolt can be operated from either side using a standard screw-in cylinder, thumbturn, or a compatible paddle handle. It also features a convenient holdback facility, allowing the latch to be held retracted for free traffic flow when required.
Please note that all faceplates and strike plates must be ordered separately to suit your specific door frame. Additionally, the use of lever handles is not recommended for wooden doors.

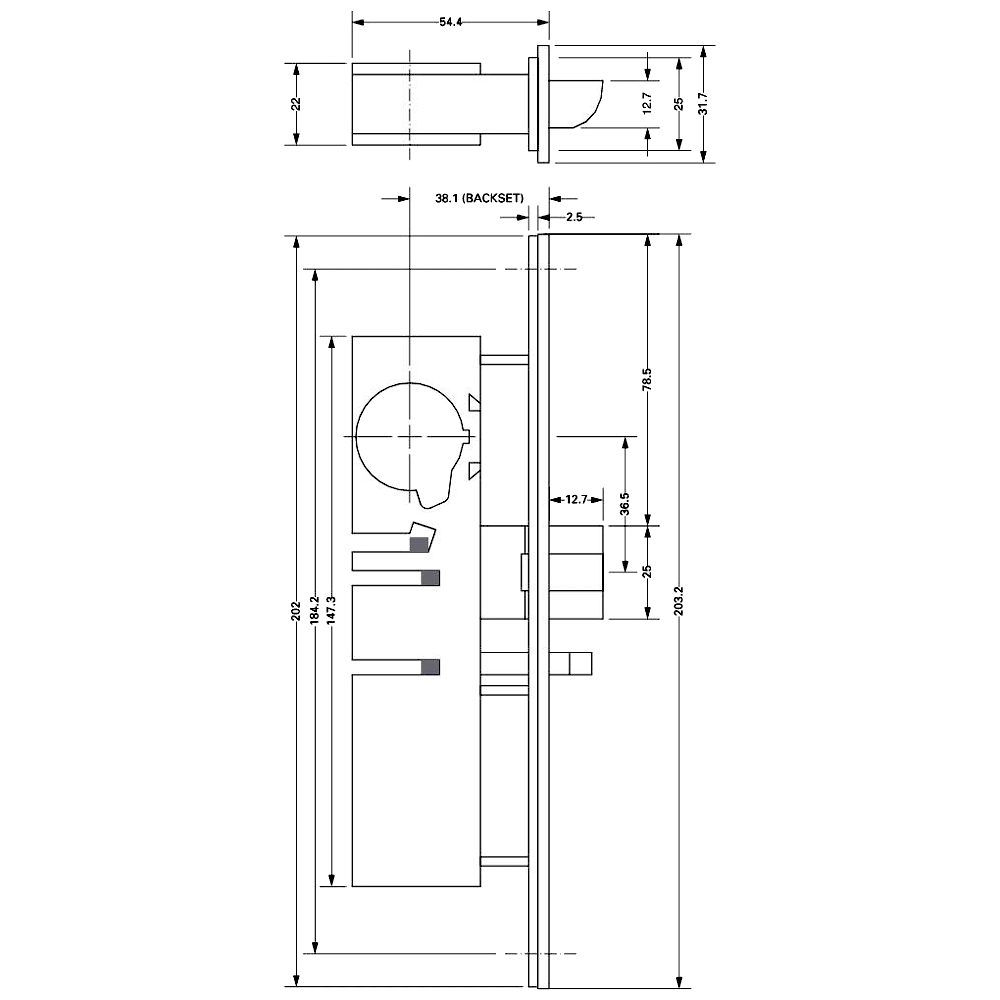

Technical Specifications
- Brand: Adams Rite
- Manufacturer Reference: 4720-401
- Backset: 38mm
- Case Depth: 54mm
- Case Height: 147mm
- Forend Dimensions: 203mm x 32mm
- Finish: Anodised Aluminium
- Case Finish: Plated Steel
- Locking Mechanism: Screw-In Cylinder
- Weight: 470g
Key Features
- Automatic Deadlocking: Auxiliary bolt automatically deadlocks the latchbolt when the door is closed to prevent shimming.
- Versatile Application: Suitable for use in hollow metal or wooden doors.
- Holdback Facility: Latchbolt can be held back in the retracted position by a reverse turn of the key to allow free passage.
- Reversible Latchbolt: Easily reversible latchbolt to suit both left and right-handed doors.
- Flexible Operation: Compatible with standard screw-in cylinders, thumbturns, or paddle handles.
- Modular Design: Faceplates and strike plates are ordered separately to match your specific installation requirements.
