Description

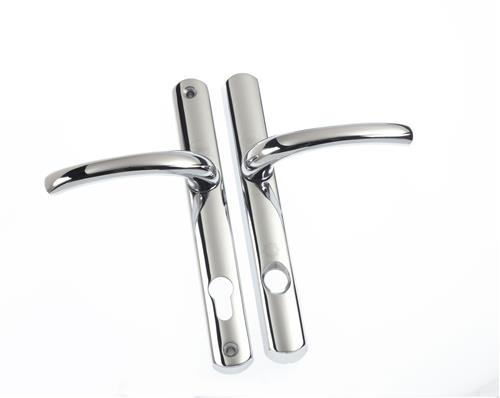

Give your cylinders maximum protection with the new Yale Platinum Security Handle.
The Platinum Series Maximum Security TS007 2 star handle provides the best level of security available for protective door furniture.
This handle carries the British Kitemark, meets PAS24 standards and is Secured by Design approved, protecting against known attack methods for ultimate peace of mind.
In addition the marine grade 316 stainless steel on the external handle and backplate provides ultimate corrosion resistance, resulting in a handle which offers the very best performance in both security and longevity.
Yale recommend using a Platinum Series 2 star handle in conjunction with a 1 star cylinder from the Yale Superior range of euro cylinders to achieve a 3 star rated system.
SpecificationsTS007:2012 - 2 star security rated hardwareBSI Kitemark approved - KM 532920
Secured by Design ApprovedAccredited with BSEN 1906:2010 grade 4. (200,000 cycles, 480 hours neutral salt spray exposure)10 year mechanical and surface finish guarantee Maximum Security.
FeaturesTS007:2012 (KM532920) 2 star security hardware, can be used in conjunction with a TS007:2012 1 star rated cylinder to offer the maximum 3 star level of security.
M6 Stainless Steel fixing bolts for improved strength and security
Supplied with fixings for PVCu and Composite doors, including removable spring cassettes, spindles and fixing bolts.
Cylinder projection on the external door face needs to be min 10 > 12mm max, internal projection should be min15mm > 20mm max
Total length 240mm
Width 35mm
Fixing screw centres 215mm
Suites with the Yale Platinum Letterplates.
