Size:

• Case height: 177mm
• Case width: 48mm

Operation:

Notes:

• Outside: Entry via code
• Inside: Exit via lever

Packaging:

• Code length: 4-7 digits - Non sequential
• Combinations: 2000+ possible code options
• Holdback: No
• Latch: Standard 60mm backset
• Handed: No
• Usage: Heavy duty
• Suitable for doors 35-65mm thick
• Easy code change

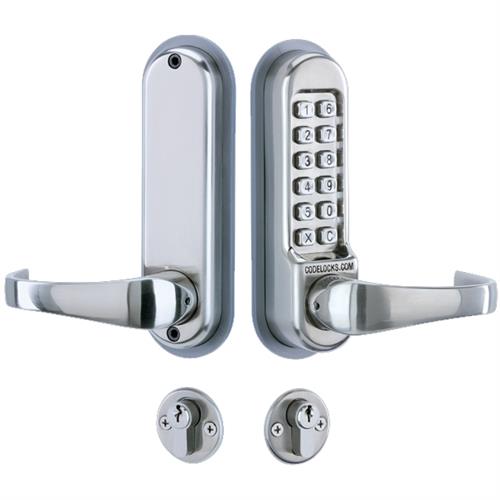

• Supplied with a 35/35 euro key both sides cylinder
• For 50mm or 70mm backsets purchase additional latch to correct size
• Can be used on rebated doors with corresponding rebate
• Anti panic safety feature allows the outside lever handle to retract the latch after the correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed. The key retracts the latchbolt for entry without the code. The key controls the deadbolt position. when the deadbolt is projected the safety feature allows the inside lever handle to retract the deadbolt and the latchbolt preventing people from being accidentally locked in
