Size:

• Height: 161mm
• Width: 41mm
• Backset: 55mm

Operation:

Notes:

• Outside: Entry via code
• Inside: Exit via handle

Packaging:

• Code length: 4-7 digits - Non sequential
• Combinations: 2000+ possible code options
• Holdback: No
• Handed: No
• Usage: Medium duty
• Suitable for doors 35-65mm thick
• Easy code change
• Light commercial/domestic use

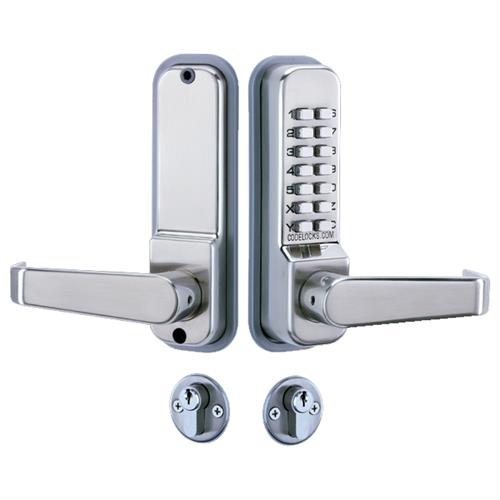

• Supplied with mortice lock and a 35/35 euro key both sides cylinder
• Anti panic safety feature allows the outside lever handle to retract the latch after the correct code is entered. The spring loaded latchbolt will lock automatically when the door is closed. The key retracts the latchbolt for entry without the code. The key controls the deadbolt position. when the deadbolt is projected the safety feature allows the inside lever handle to retract the deadbolt and the latchbolt preventing people from being accidentally locked in
