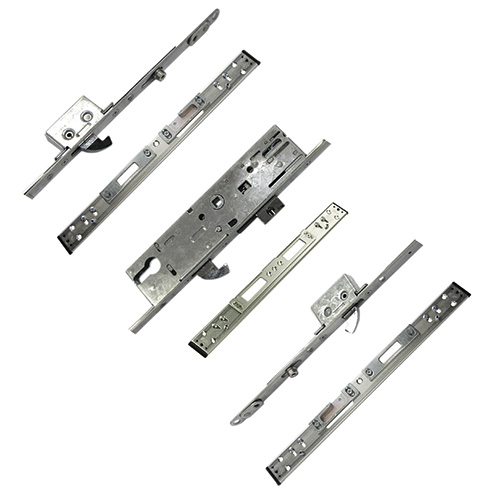

Yale Doormaster Professional - Suits UPVC Doors

Yale Doormaster Professional - Suits UPVC Doors

Click image to enlarge
Click here to email this image


Yale Doormaster Professional - Suits UPVC Doors
Yale Doormaster Professional - Suits UPVC Doors
Yale

The Professional Yale Doormaster has croppable extensions that offer replacement for an even wider range of multipoint locks.

  • 3 hook ,2 roller version
  • Supplied with pre-assembled keeps using the patented uni-packer system for fast, easy and reliable installation.
  • Variants available for PVCu, Timber and Compositedoors
  • 3 hook bolts for high security anti separation
  • Fixing tabs for easy and secure fitting
  • Rounded ends for safe installation
  • Designed and tested to police approved standard secured by design and PAS24 door set capable
  • Yale keyfree compatible


Exc VAT from: £87.50
Inc VAT from: £105.00

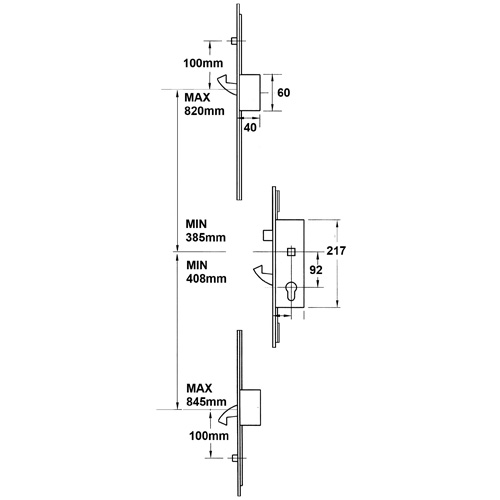

Size:

  • Adjustable distance between top hook and spindle between 385mm and 820mm
  • Adjustable distance between bottom hook and spindle between 408mm and 845mm
  • Centres 92mm
  • Length Maximum: 2060mm
  • Minimum: 1150mm
  • Case Height 217mm
  • Case Depth Backset+17mm
  • Maximum top hook to spindle: 820mm
  • Minimum top hook to spindle: 385mm
  • Maximum bottom hook to spindle: 45mm
  • Minimum bottom hook to spindle: 408mm

Operation:

  • Latch reversal: Undo the screw or screws in the latch to remove. Reverse, reinsert and replace screw.
  • Nightlatch reversal: Automatically reverses.

Notes:

  • Croppable design allows the lock to suit a range of locks by cutting or cropping the faceplate
  • Supplied with individual keeps
  • Uni-packer system allows for the keep to be fitted to any profile
  • Fixing tabs to allow for secure fitting
  • Rounded ends
  • Hook and latch central gearbox

Packaging:

  • Supplied boxed in singles
  • Supplied with: x3 keeps and uni-packer system, fixing screws pack, x2 allen keys, split spindle
Part Number BacksetCentres/PZFaceplateSpindle Exc VAT Inc VAT Qty Add
YADMPRO35 35mm 92mm Round 16mm Split 8mm £87.50 £105.00
- + Add
YADMPRO45 45mm 92mm Round 16mm Split 8mm £87.50 £105.00
- + Add
